7 Inch DVR Quad Wireless 1080P Camera System with Touchable Monitor
Aotop CM-709MDW-3 7 inch HD in-vehicle 2.4G digital wireless quad monitoring system is easy to install. The monitor has a touch screen function, the camera is rugged and durable, with IP69K and HD night vision functions, providing high definition view in any special environment. The open transmission distance is up to 646ft, the signal is stable and anti-interference, especially suitable for various vehicles such as trucks, agricultural vehicles, forklifts, bulldozers, etc.
| Wireless Monitor Specifications | |
|---|---|
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | with |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working: ≤110mA |
| Power consumption | ＜3W |
| AV input | 1-4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz |
| System | PAL/NTSC automatically |
| PAL/NTSC automatically | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| 200m in open area | 4G |
| Power cable | DC Cable |
| Wireless Camera Specifications | |
|---|---|
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | Working temperature |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | SNR |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
System Detail Information

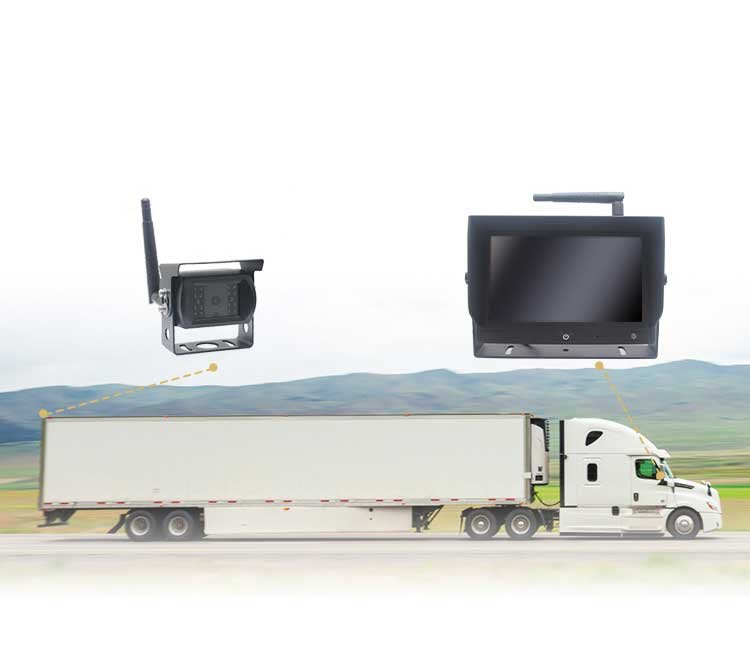

2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install. Save money & time！
DVR function built-in 128GB memory card, support 4CH camera video signal real-time recording and video playback.

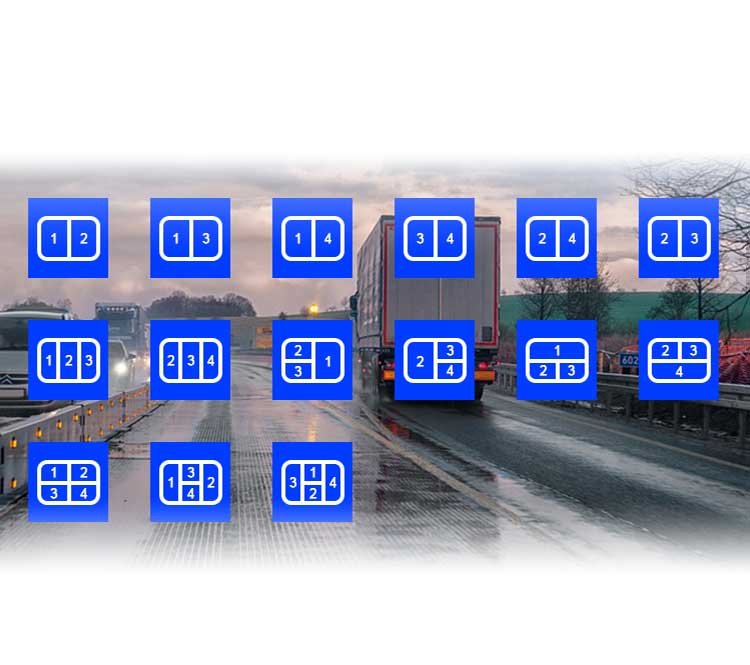

Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view and single view to meet various monitoring needs and reduce blind spots.

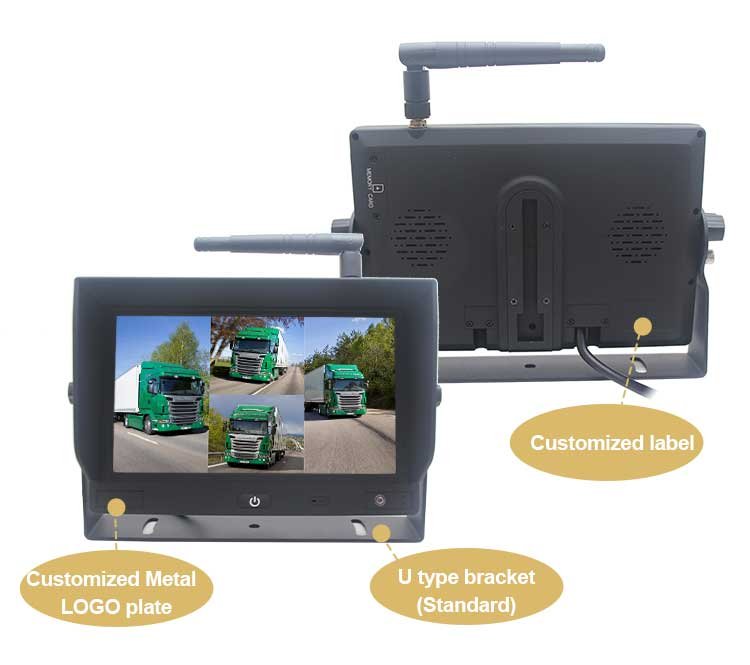

Monitor LOGO plate & label support commercial customization. Standard is with U-type bracket, more optional!
【Accessories】
DC12-24V wide voltage, applicable to a variety heavy duty & commercial vehicles.
