TFT Digital 3CH Bus Rear View Monitor
CM-500M digital TFT bus rear view monitor is capable of input 3CH CVBS backup camera video signal to effectively monitor the vehicle’s surroundings and provide intuitive and clear visual assistance for reversing.
| Specification | |
|---|---|
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, 300cd/㎡ |
| Resolution | 800*RGB*480 |
| Compatible System | PAL & NTSC (Automatically) |
| OSD Control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch) |
| View Angle |
Hor. L(70°) R(70°) Ver. UP(50°) DOWN(70°) |
| Image Reversion | NA |
| Power Requirement | 12V DC (12-24V DC Optionql) |
| Power Consumption | 5W |
| Storage Temperature | -30℃~+80℃ |
| Working Temperature | Working Temperature |
| Key Color |
Black Rubber Oil, Radium Carving, Through Blue Light |
| AV Inputs |
3 Channels Video Signal Input 2 Channels Audio Signal Input |
| Number Of Trigger And Display | 3 Triggers |
| Other Features |
With AV-IN, Built-In Speaker, With Stand & U Shape Bracket, Reference Point And Time Control For Reverse Gear Sttings |
| Accessories |
Remote Control, Power Supply Cable, User Manual, Bracket, AV IN Line, Connector Conversion Line |
- With Sunshade Cover & U-Bracket
- 800*480 Resolution (TFT LCD Digital Screen)
- 3CH x CVBS Cameras Video Signal Input
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- 1CH External Audio & Video Input (3.5MM Jack Port)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC TV System
Monitor Detail Information
AOTOP motorhome backup camera monitor system
❶ 5 inch 800*480 TFT digital screen
❷ 1 Way external audio/video input 3.5MM jack (special design)
❶ 1CH audio signal input built-in speaker
(play real time road traffic sound)
❷ Back label sticker (customized you want)

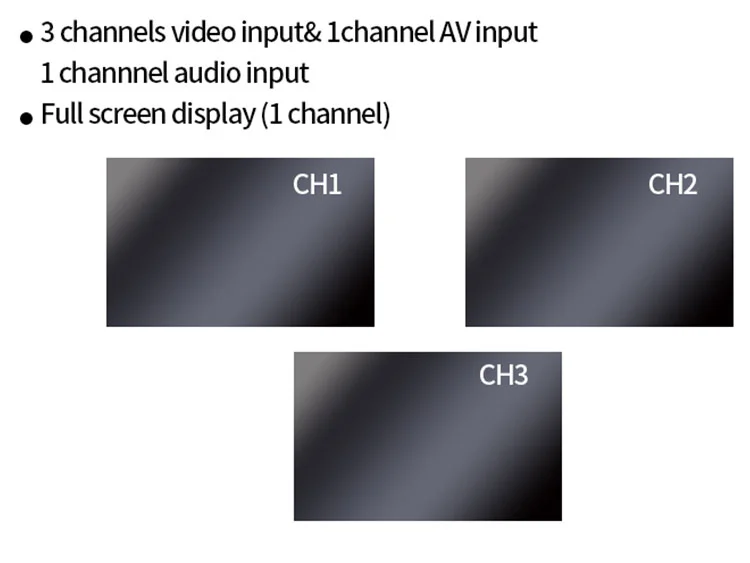

Support 3 channels camera AV signal input, channel full screen display
Easy operation for both monitor and remote control, user friendly
【Size】
17*12*6.33 CM
6.69″*4.72″*2.49″
For wiring diagrams of the camera and monitor connections, you can contact us to get the installation instructions for details
In addition to the default U-bracket design, a variety of other mounting bracket options are available
