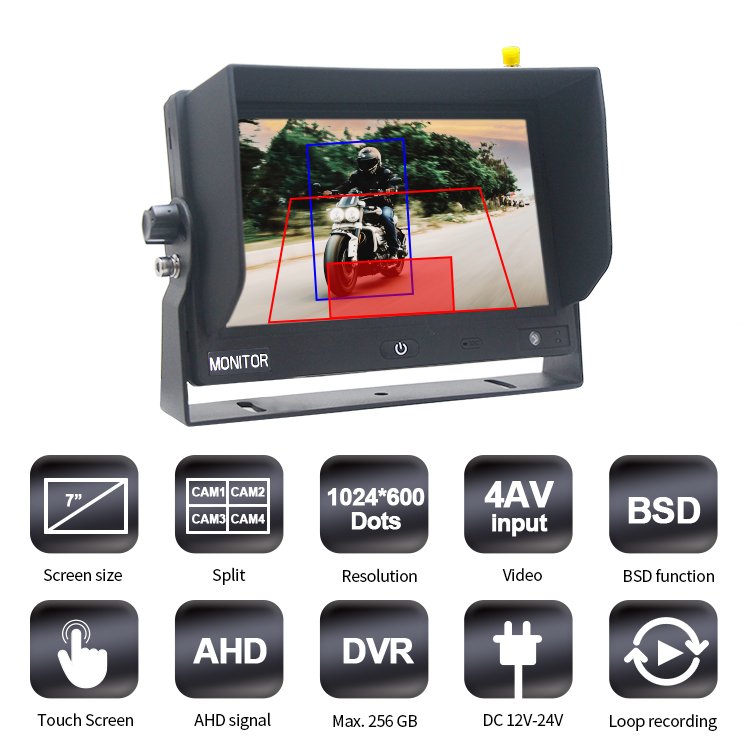

DVR 7 Inch IPS LCD Quad View AI Monitor
Aotop DVR 7 inch IPS LCD quad view AI monitor built-in 4CH AI human vehicle detection algorithm, detecting pedestrian & vehicles all around the vehicle offer visual sound warning to remind drivers of potential risks and avoid collision, improving driving safety! Full screen touch and built-in SD card without external DVR, 4CH HD video individually recorded with its storage 256GB. If you are looking AI BSD monitor for your fleet please contact sales@aotop.com!
| Specification | |
|---|---|
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Backlight | LED, Brightness 500 Cd/M2 |
| Contrast | 500:1 |
| Viewing Angle | Up—85°, Down—85°,Left—85°, Right—85° |
| Operation Method | Full Screen Touch |
| OSD Control |
Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input |
P/N, 720P/1080P , 720N/1080N (The Type Of Video Signal Of 4 Channels Should Be The Same) |
| Recording | Support |
| SD Card Storage | SD Card Storage |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |
| Trigger | 4CH, With Guideline Function |
| Blind Spot Detection | Support 4 Channel Front、Left、Right、Back |
| Shockproof Level | 4G |
| Recording Audio | 4 Channels Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70 ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80 ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , Without Cameras |
| Speaker |
BSD Warning From The Monitor (Audio From The Camera Is Not Supported) |
- 1024*RGB*600 Resolution, IPS LCD Digital Screen (Full Touch Screen)
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / PAL / NTSC
- Built-in GPS Antenna Device, Supported Driving Speed Measurement

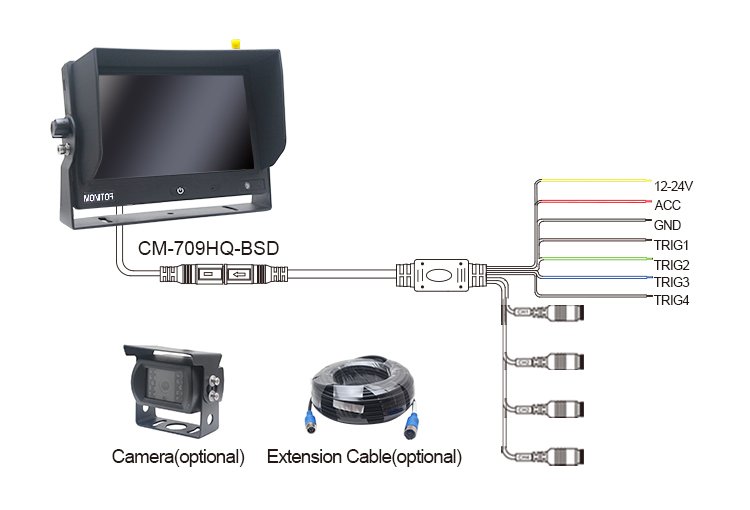

- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Built-in Intelligent Algorithm Chip Supported 4CH Image Blind Spot Detection; Pedestrian Vehicle Obstacle Detection;
- Available Speaker BSD Hazardous Area Approach Audible Warning
- Full Display & 2/3/4 Split View Mode
- Max. 256GB Memory Card (4CH DVR Recorder)
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
Monitor Detail Information
Monitor built-in 4CH AI human & vehicle detection algorithms, which can accurately and quickly identify pedestrians (green box) and vehicles (blue box) around the vehicle. When the target is detected entering the set monitoring area, the monitor will immediately sound an alarm.
High definition 1024*RGB*600 IPS LCD digital screen

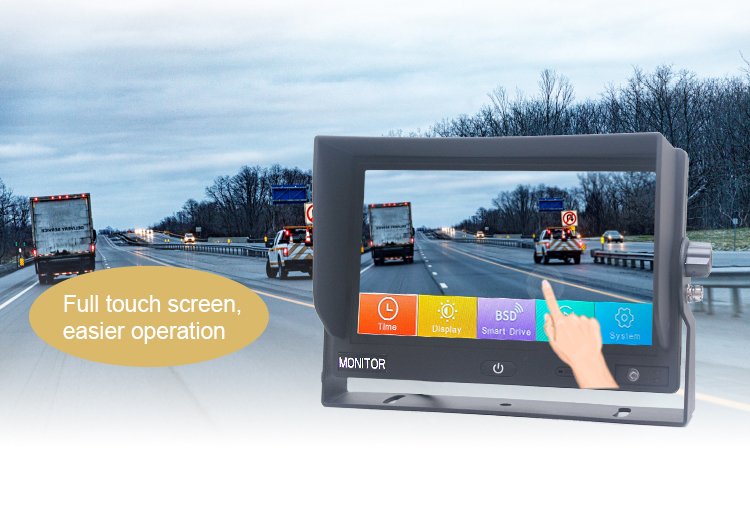

Full touch screen, easy to operation

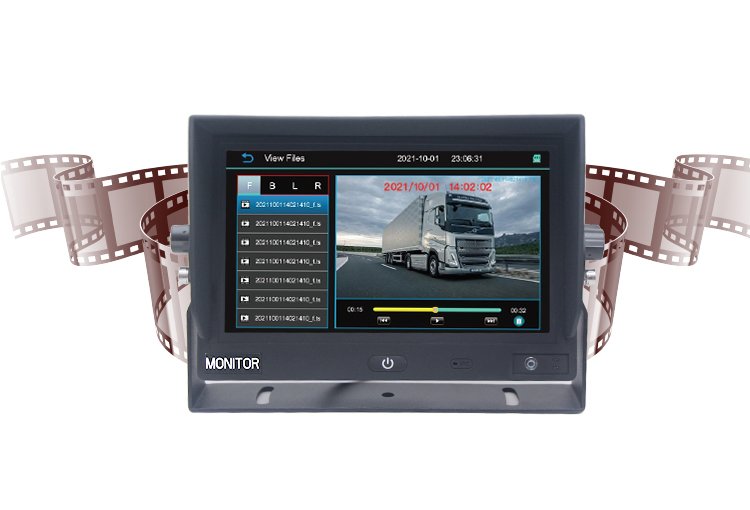

Built-in 256GB memory SD card, without external DVR device. Supported 4CH video signal individually DVR recording. Can loop recording & real-time playback.

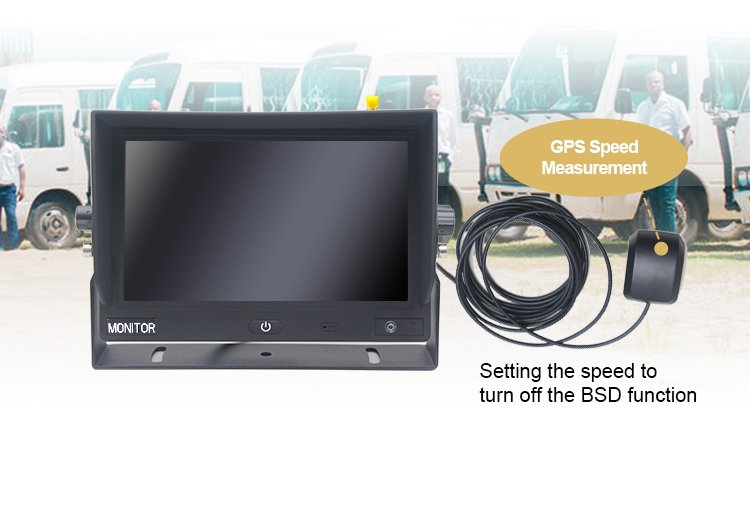

Connection GPS device speed vehicles, monitor background can be set to reach what speed AUTO shut down the detection function.
Truck AI quad view monitor solution, through multi-view camera monitoring, AI intelligent recognition warning, DVR driving record etc functions, effectively reduces the blind spot, reduces the risk of accidents due to restricted vision as much as possible.
