7 Inch IPS LCD Digital Car Mirror Monitor
R-701AHD 7 inch IPS LCD digital car mirror monitor supports 3CH AHD 1080P camera video signal input, allowing driver to view vehicle surround in real time, reduces the risk of collision or scratches caused by blind spots. This AHD mirror monitor design is replace the original mirror, can meet the user’s image needs for high quality vehicle rear view monitoring.
| Specification | |
|---|---|
| Screen ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Backlight luminance | LED, Luminance 800 cd/㎡ |
| Contrast | 800:1 |
| Frame rate | 1080P@25fps,1080P@30fps |
| Viewing angle | IPS, Up/down/left/right more than170° |
| Working temperature | -20~+70 ºC |
| Working humidity | 85%RH |
| Storage temperature | -30~+85 ºC |
| Power supply | DC12-24V |
| Bootup time | 2S |
| Current consumption | TYPE: DC12V/550mA |
| OSD control | Image setting, general setting, System setting, Volume |
| Parking guide line | Parking guide line |
| Mirror/ Normal image | Parking guide line |
| Reversing delay | Parking guide line |
| Signal input/Image display |
3 channels 1080P/720P/ CVBS video input; 1channel audio input; Compatible with mixed input of CVBS and AHD; Compatible with mixed input of PAL and NTSC; |
| Trigger control | 3CH trigger control |
| Monitor display | 1CH single image display |
| System | PAL/NTSC automatically |
| Shockproof level | 4G |
- 1024*RGB*600 Resolution (IPS LCD Screen)
- 800cd/㎡ High Brightness Screen
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available To Cameras: 720P / 1080P / AHD / Compatibility CVBS / PAL / NTSC
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Touch Button Easy To Operation
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
Monitor Detail Information

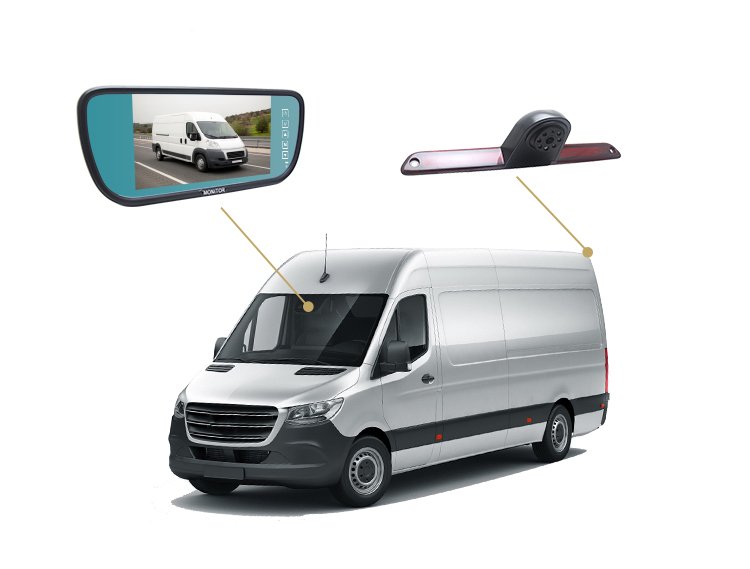

AOTOP HD Brake Light Camera Mirror Monitor System For Benz Sprint Commercial Vehicle

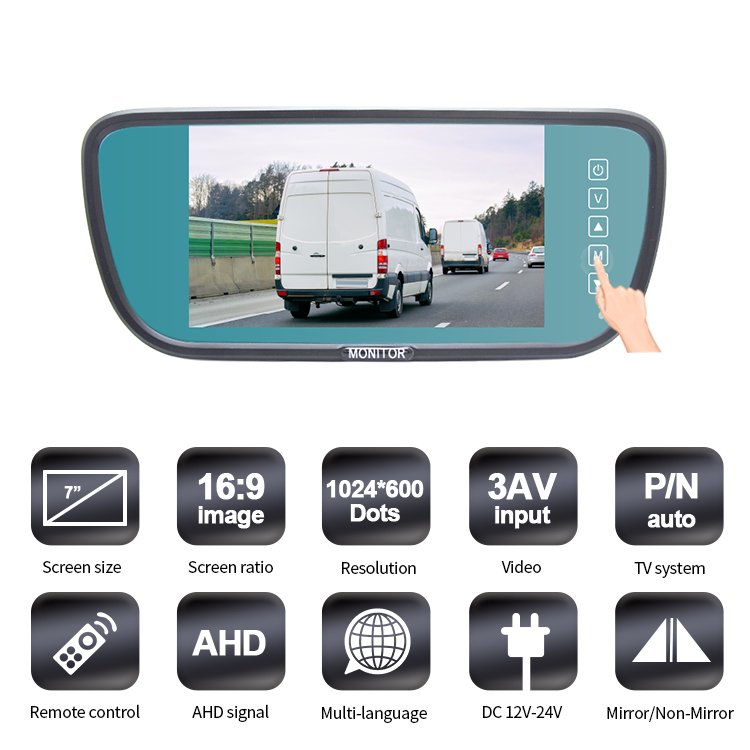

❶ 7 inch HD 1024*600 IPS LCD digital screen
❷ Touch button easy to operation

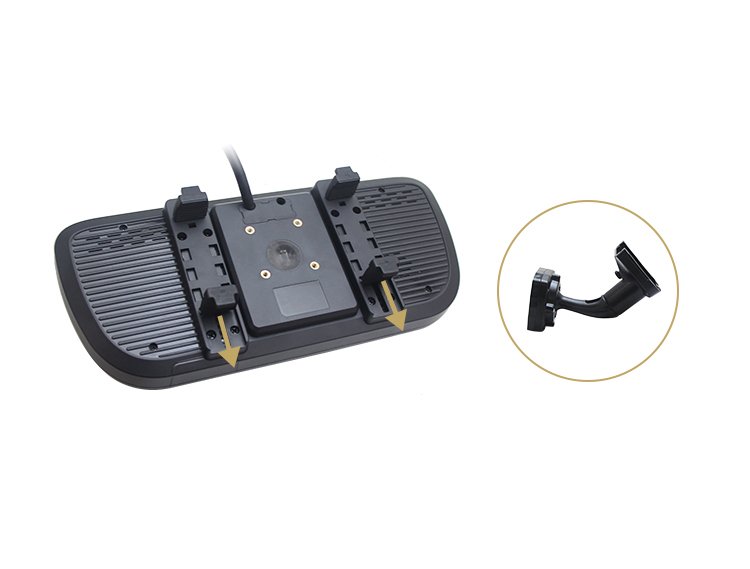

❶ Mirror monitor can be clipped directly to the original mirror, or you can choose the exclusive model bracket to replace the original mirror

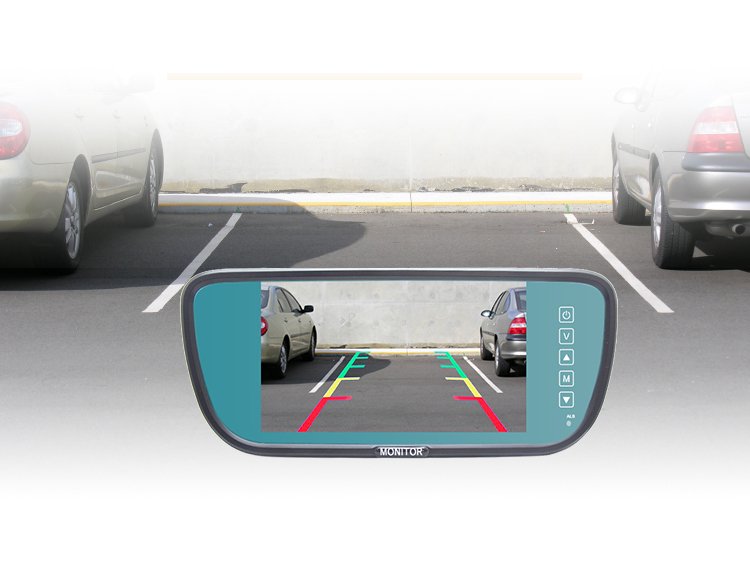

Trigger guide line assisted reversing when reversing

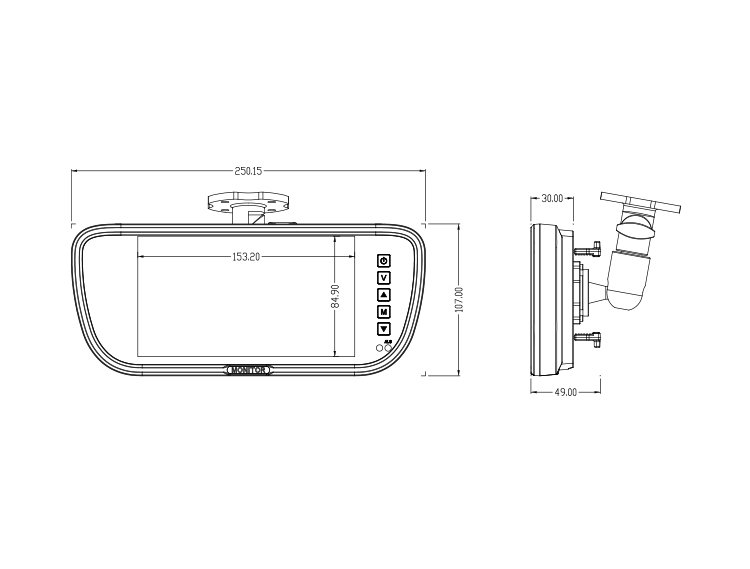

【Size】
25*10.7*3 CM
9.8″*4.2″*1.2″

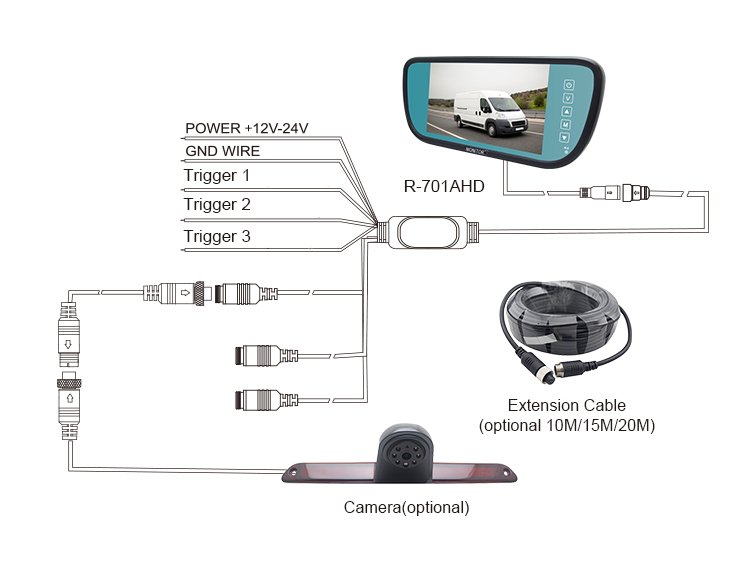

【Connecting Wiring Diagram】
For specific connections you can contact our engineers
